Profiling System

Max S 500 - Integrated Subsurface Investigation System

The Max S 500 is an integrated subsurface investigation system using magnetotellurics (MT): it reads natural electromagnetic field variations to profile the ground down to 500 metres, mapping aquifers, fractures and bedrock in real-time 2D/3D - and reports a drilling feasibility percentage.

Call for price & demo WhatsApp us

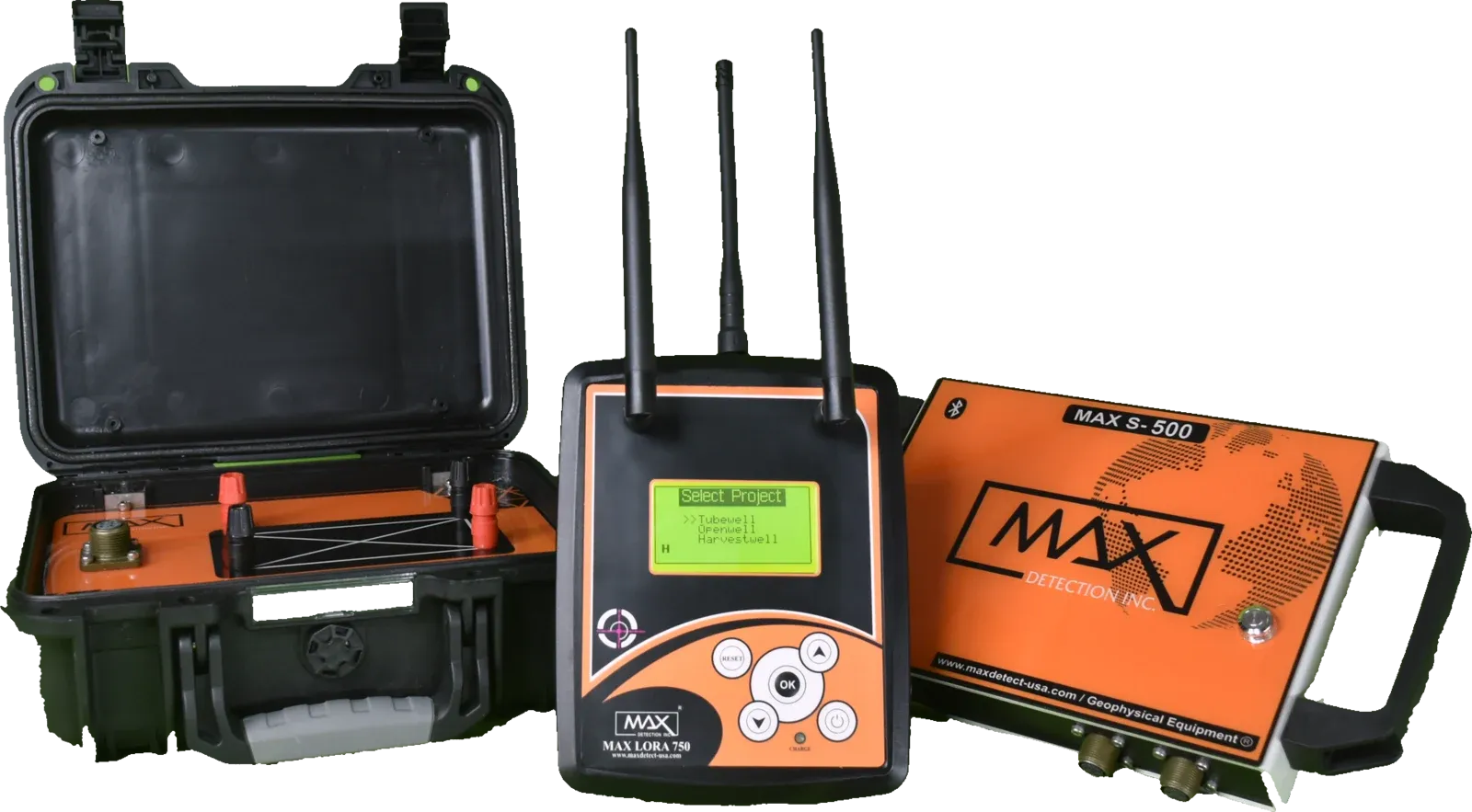

The Max S 500 system - the ADS-IP case, the Lora 750 locator console and the Profiler unit together

Three instruments, one system

The Max S 500 is not a single box. Each instrument below reads the ground a different way, and each is also sold on its own.

  1. The point

    Max Lora 750

    Find the fault line. Mark the point. Drill with confidence.

    View Max Lora 750 →
  2. Horizontal

    Max Profiler

    Metre-by-metre horizontal scanning of rock and contour.

    View Max Profiler →
  3. Vertical

    ADS-IP

    Vertical analysis that tells you whether to drill - and why.

    View ADS-IP →
What you get

The complete Max S 500 kit

The whole system arrives in one rolling field case - the three instruments, the electrodes and cabling, and power for a day on site. This is everything that comes out of the box.

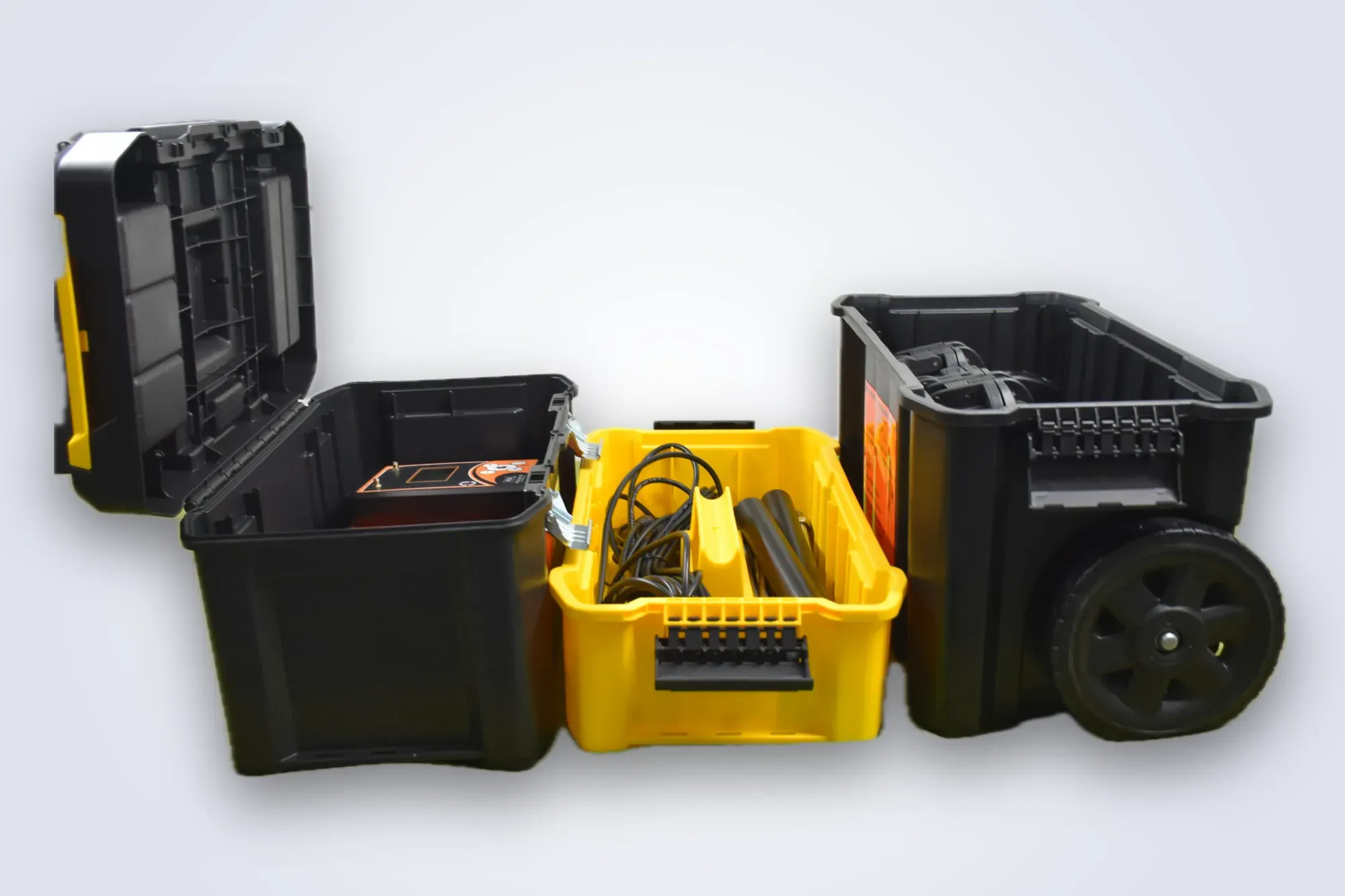

The Max S 500 rolling case opened out: the top box with the Lora 750 console and S-500 host unit, the yellow middle tray of cables and electrode rods, and the wheeled bottom bin holding the ADS-IP hard case
Top box, middle tray, wheeled bin - opened out.

Studio photograph; background replaced digitally.

  1. Rolling three-tier field case

    Latched top box, lift-out middle tray and a wheeled bottom bin with a pull handle. Everything below lives in it.

  2. Max S-500 host unit

    The orange unit that runs the profiling survey and pairs with a tablet over Bluetooth for the integrated ADS software.

  3. Max Lora 750 locator

    The 3D locating console with its detachable VHF / VLF antennas - it walks you onto the point.

  4. ADS-IP terminal, in its own hard case

    The induced-polarization unit for the vertical survey, with its cabling.

  5. Four stainless electrode rods

    With insulated grips, for the IP array.

  6. Survey cables, connectors and clips

    The multichannel cabling that links the host, the IP switch and the electrodes.

  7. Field power bank

    A 20,000 mAh pack for charging on site.

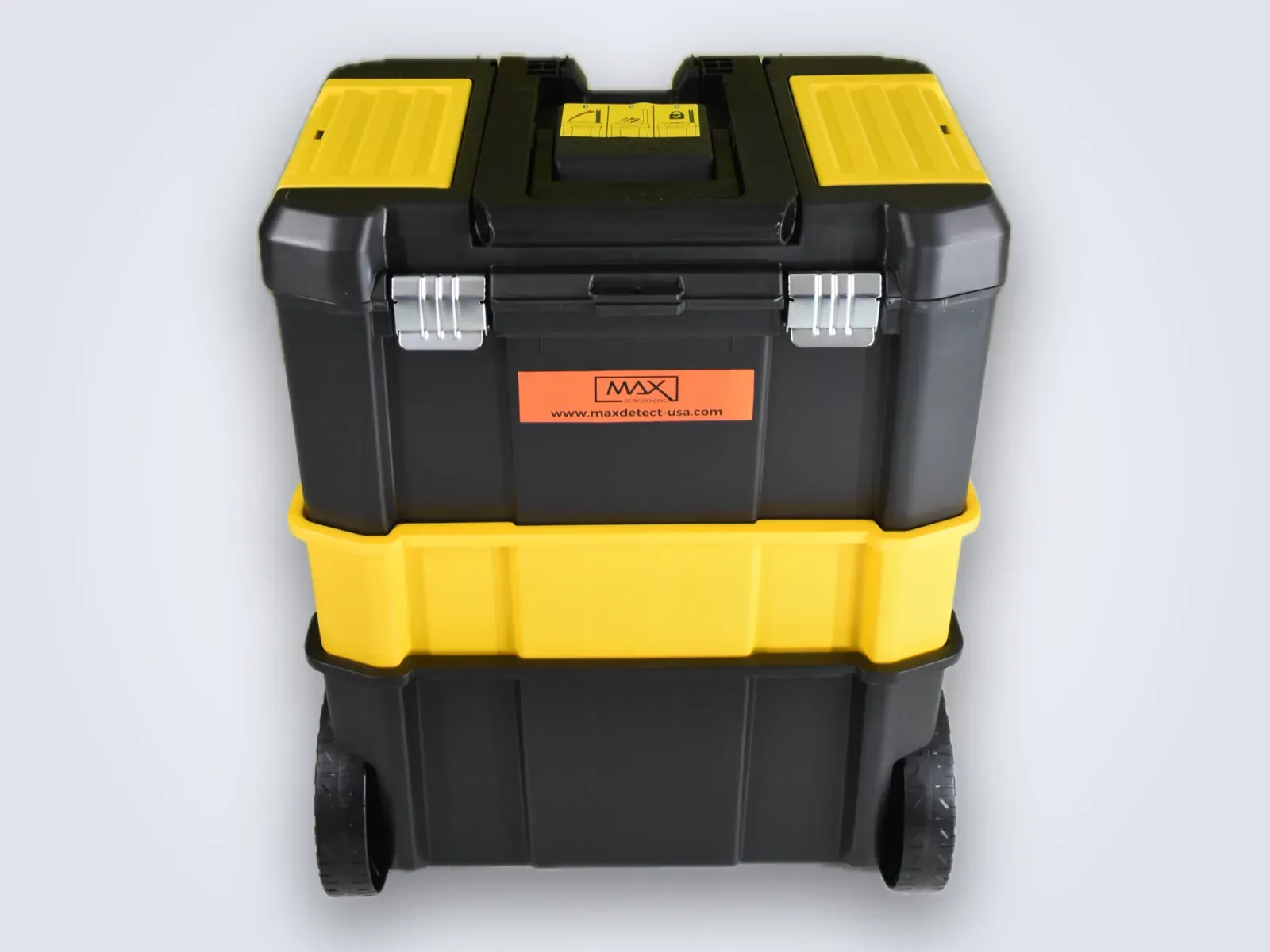

  • The closed Max S 500 rolling case, front view - black and yellow three-tier case with chrome latches and the Max Detection label

    Closed and latched: one rolling case for the whole system.

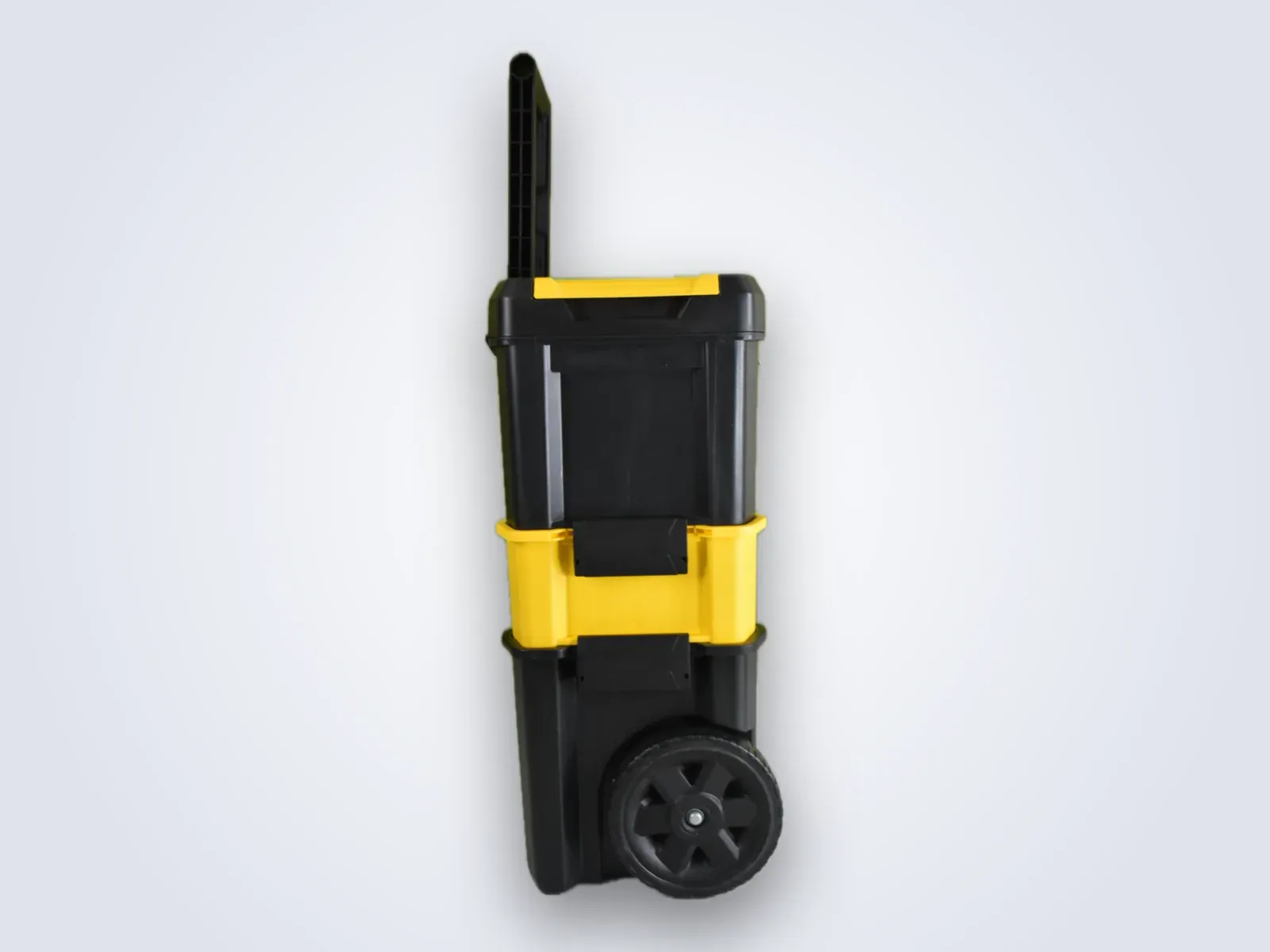

  • The Max S 500 rolling case from the side with the pull handle raised, showing the wheels

    Pull handle and wheels - it rolls from the vehicle to the survey line.

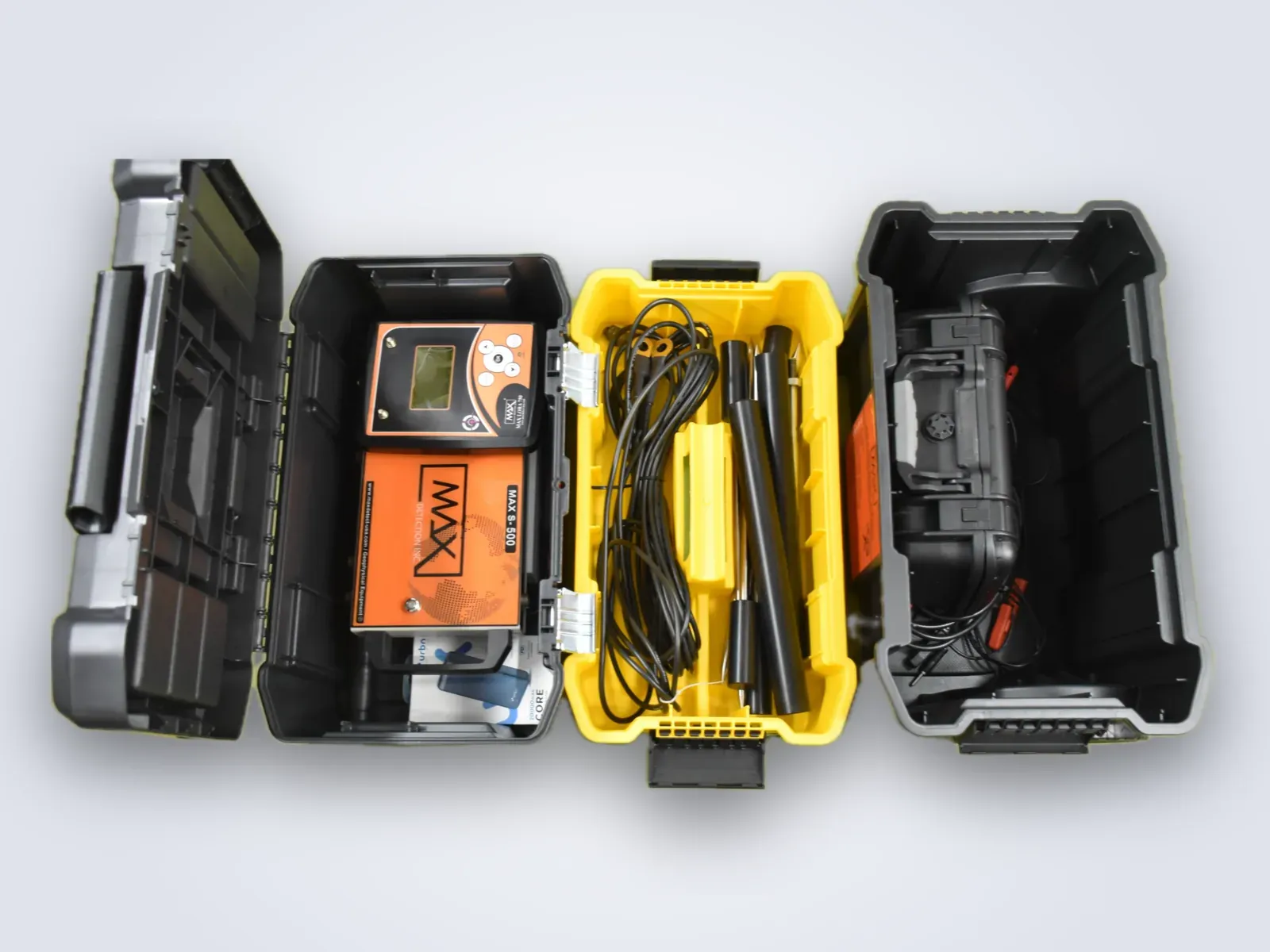

  • The three tiers of the case opened and laid side by side, seen from above - the Lora 750 console and orange S-500 host unit in the top box, cables and electrode rods in the middle tray, the ADS-IP hard case in the bottom bin

    From above: the top box, the middle tray and the wheeled bin, each with its own part of the system.

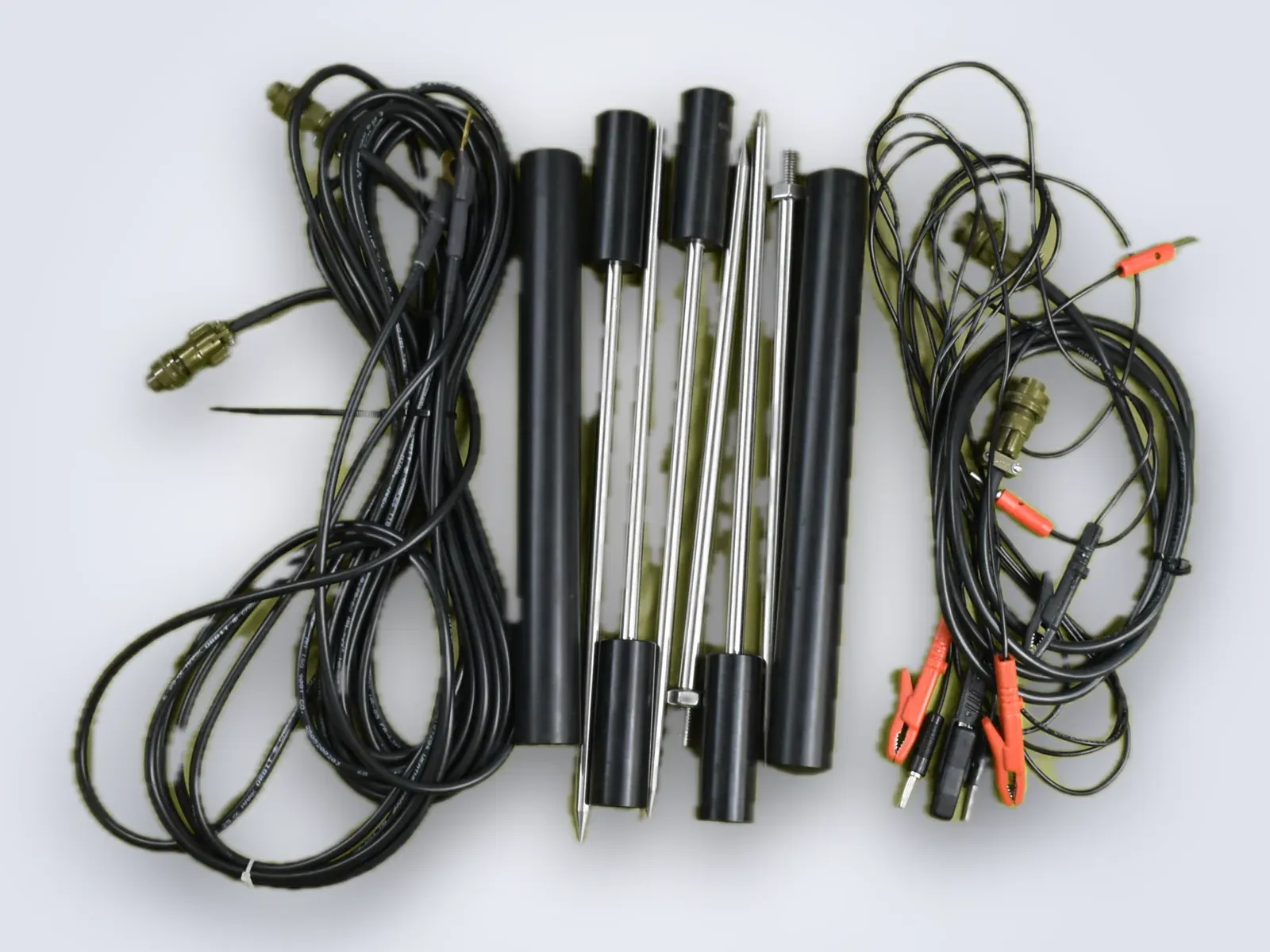

  • Survey cables, four stainless electrode rods with insulated grips, connectors and clips laid out flat

    The electrode rods, survey cables, connectors and clips from the middle tray.

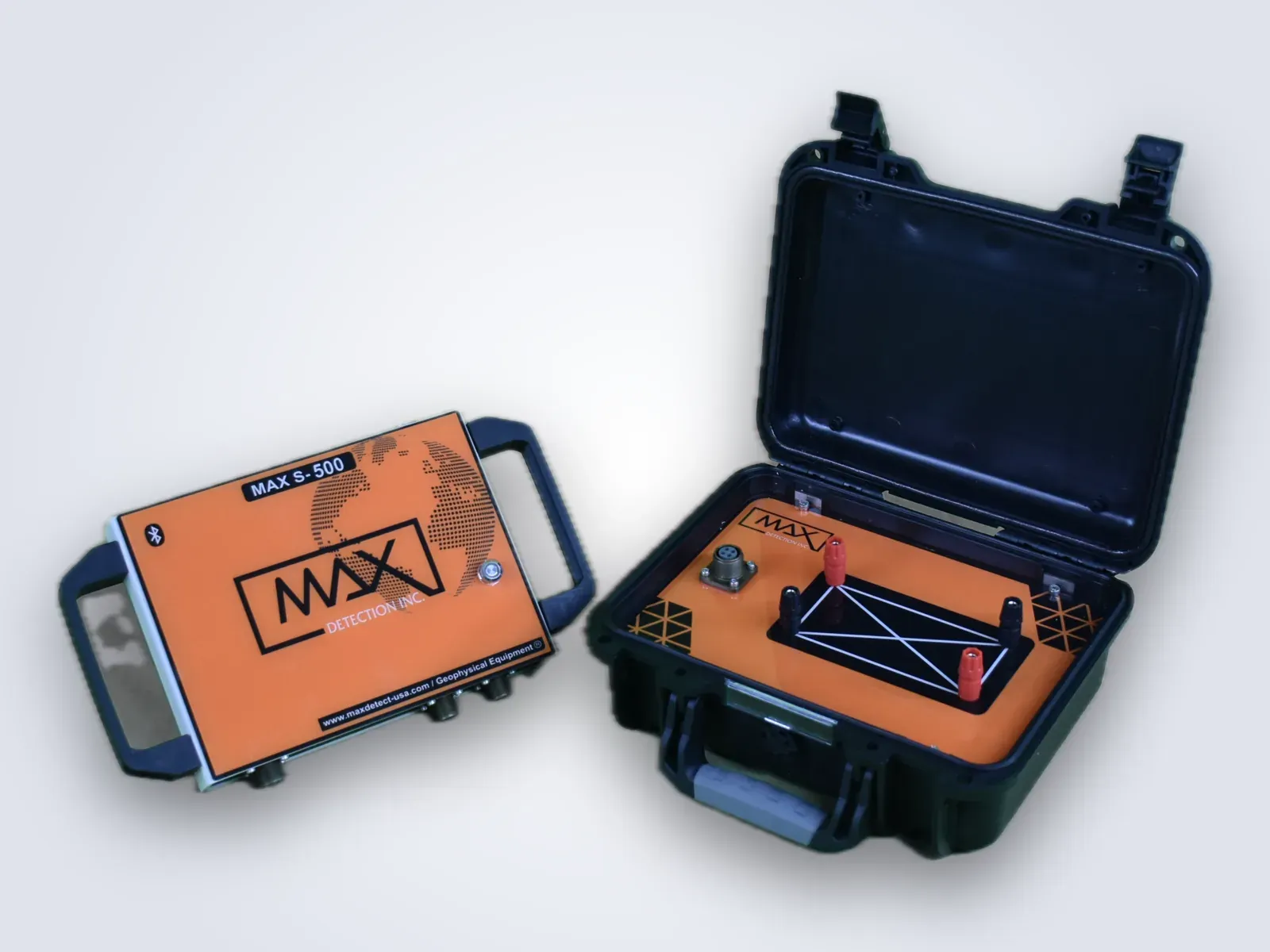

  • The three instruments out of the case - the ADS-IP hard case open, the orange Max S-500 host unit and the Lora 750 console

    The three instruments out of the case: ADS-IP, the S-500 host unit and the Lora 750.

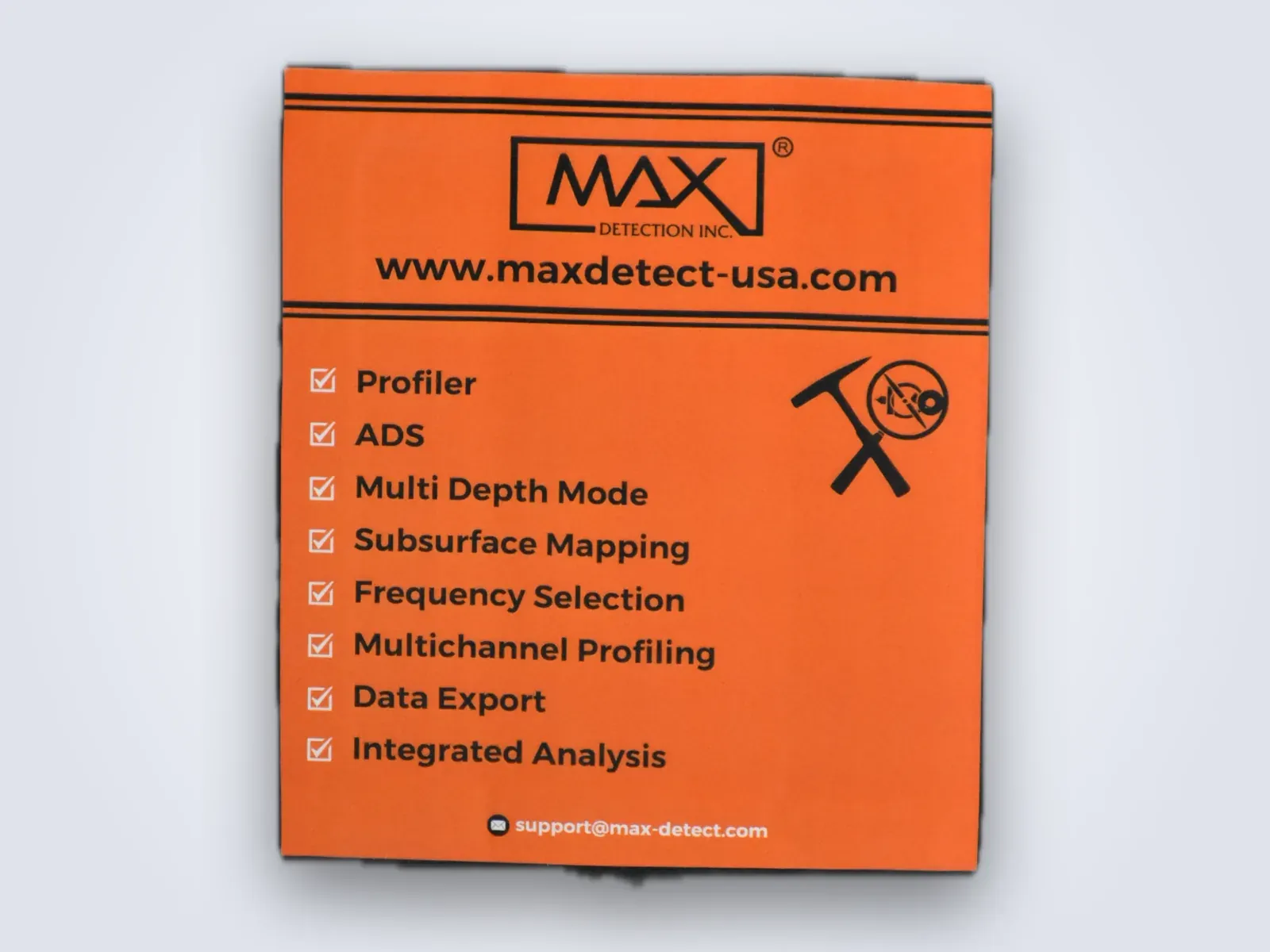

  • The Max Detection label on the case listing Profiler, ADS, multi-depth mode, subsurface mapping, frequency selection, multichannel profiling, data export and integrated analysis

    The capability label on the case: Profiler, ADS, multi-depth mode, subsurface mapping, frequency selection, multichannel profiling, data export, integrated analysis.

Pack list as photographed in our Bengaluru studio. Confirm the current contents and accessories with us when you order.

Studio photograph; background replaced digitally.

In the field

How it works in the field

  1. Pair and configure

    Connect the tablet over Bluetooth, set depth, frequency, spacing and points in the Max application.

  2. Run the profile survey

    Walk the transect while the S 500 records the live conductivity curve at each station.

  3. Read the layers

    Toggle depth layers on the profile: consistent low resistivity signals a potential aquifer; a vertical fracture signal marks a water-bearing fissure; high-resistivity blocks are bedrock.

Specifications

Key specifications

Technology Magnetotellurics (MT) - passive electromagnetic profiling
Depth 150 / 300 / 500 m (up to 500 m depending on soil conductivity)
Scanning Horizontal + vertical land scanning
Output Real-time 2D/3D subsurface profile, feasibility % and drill / no-drill recommendation
Targets Groundwater, mineral veins and geological faults
Electrodes 2
Software Integrated ADS software by Max Detection Inc., Bluetooth tablet pairing
Questions

Max S 500 FAQ

How does the Max S 500 find groundwater?

It uses magnetotellurics - measuring natural electromagnetic field variations in the earth - to build a resistivity profile of the subsurface. Low-resistivity zones indicate moisture and potential aquifers; high-resistivity zones indicate dense, dry rock.

Does the S 500 guarantee water?

No instrument can guarantee a result. The manufacturer’s manual itself advises reading results against local geological conditions and existing borehole data - which is exactly what our training teaches you to do.

Included with purchase

Training & support included

Every Max system ships with field-based practical training at Siddhani Enterprises - machine operation, survey setup and result interpretation - plus 2-year warranty support, service during and after the warranty period, and genuine spare parts.
